Dreamhall Advanced Dso Tc3 Multifunctional Device Combining A Digital Oscilloscope Transistor Tester and Signal Generator,STANDARD

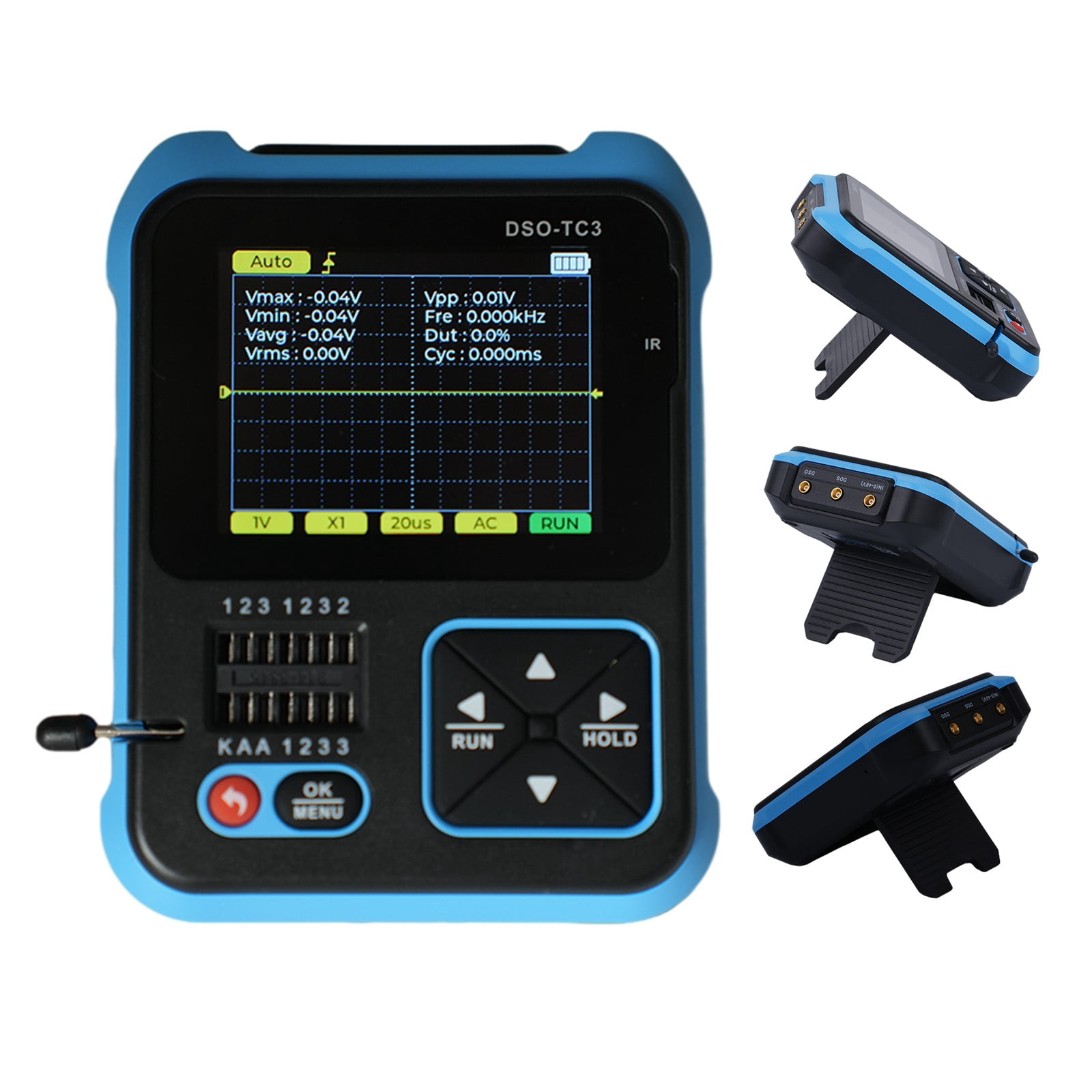

<p><strong>Features</strong><br>*FIELD REPAIRS TAKE IT WITH YOU: 3 IN 1 MULTIFUNCTION DIGITAL OSCILLOSCOPE TRANSISTOR TESTER FUNCTION SIGNAL GENERATOR<br>*1 TOUCH TO ACHIEVE, CAPTURE ACCURATELY: High sensitivity capture, Accurate and fast<br>*6 MAJOR WAVEFORMS, SWITCH AT WILL: Sine wave, Square wave, Pulse wave Triangle wave, Ramp wave, DC<br>*1500МАН HQ POLYMER LITHIUM BATTERY, 4H SUPER BATTERY LIFE, &amp; Portable<br>*2.4-INCH TFT FULL COLOR HD DISPLAY, VISIBLE EVEN IN SUNLIGHT<br>*INVISIBLE BRACKET, RELEASE YOUR HANDS: 1-piece folding bracket, Stable and does not take up space<br><br><strong>Specification</strong><br>Model: DSO-TC3<br>DIGITAL OSCILLOSCOPE<br>Real-time sample rate: 10MSa/s<br>Analog Bandwidth: 500Khz<br>Input resistance: 1ΜΩ<br>Coupling : AC/DC<br>Test voltage range: 1:1 probe: 80Vpp (±40V); 10:1 probe: 800Vpp (±400V)<br>Vertical Sensitivity (×1): 10mV-10V<br>Horizontal time base range: 1us-10s<br>Trigger mode: Auto / Normal / Single<br>Trigger type: Rising edge / Falling edge<br>Waveform Freeze: Yes</p><p>Capacitor ESR value: Yes</p><p>Automatic measurement: Maximum, minimum, average,<br>rms, peak-to-peak, frequency, period, duty cycle<br><br>FUNCTION SIGNAL GENERATOR<br>Sine wave: 1-100KHz/0-3.3V/50%<br>Square wave: 1-100KHz/3.3V/50%<br>Pulse wave: 1-100KHz/3.3V/0-100%<br>Triangle wave: 1-100KHz/0-3.3V/50%<br>Ramp: 1-100KHz/0-3.3V/0-6<br>DC: 0-3.3V<br><br><strong>Packing list</strong><br>NO.1(STANDARD)<br>1. DSO-TC31<br>2.Test hook*3<br>3.Ordinary probe*1<br>4.Packing box*1<br>5.Manual*1<br>6.Type-C charging cable*1<br><br>NO.2 (OPTION)<br>1. DSO-TC3*1<br>2. P6100 High Voltage Probe*1<br>3. Adapter*1<br>4. Ordinary probe*1<br>5. Test hook*3<br>6. Packing box*1<br>7. Manual*1<br>8. Type-C charging cable*1</p>

• 【DSO-TC3 3 in 1 Digital Oscilloscope Transistor Tester Function Signal Generator】 -

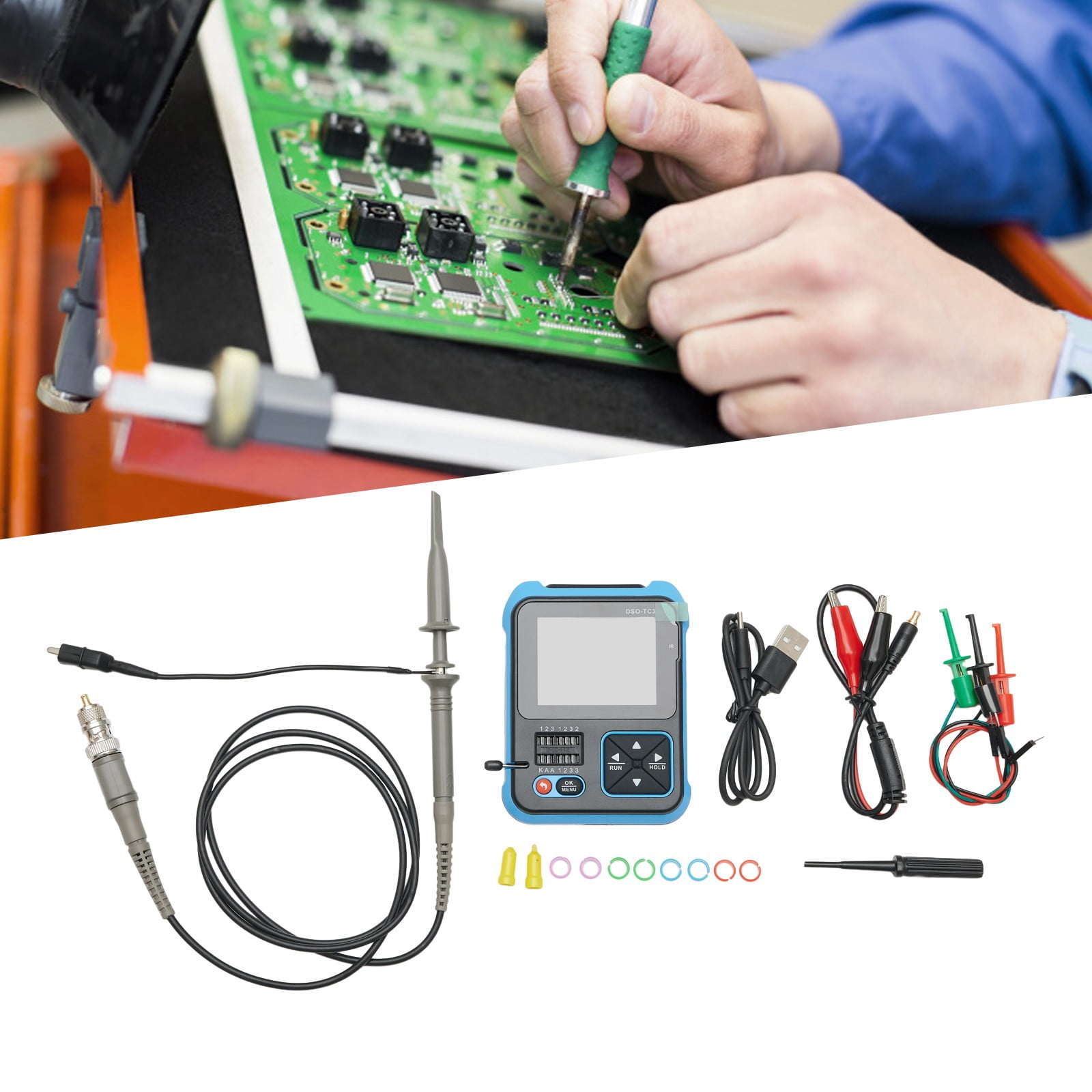

• 【FIELD REPAIRS TAKE IT WITH YOU: 3 IN 1 MULTIFUNCTION DIGITAL OSCILLOSCOPE TRANSISTOR TESTER FUNCTION SIGNAL GENERATOR】 The DSO-TC3 is a portable and versatile device that combines a digital oscilloscope, transistor tester, and function signal generator in . It is designed for field repairs to provide convenience and efficiency. -
• 【1 TOUCH TO ACHIEVE, CAPTURE ACCURATELY: High sensitivity capture, Accurate and fast】 With high sensitivity capture, the DSO-TC3 allows for accurate and fast measurement of various waveforms. It can easily capture and display real-time signals with just touch. -
• 【6 MAJOR WAVEFORMS, SWITCH AT WILL】 The DSO-TC3 offers six major waveform options, including sine wave, square wave, pulse wave, triangle wave, ramp wave, and DC. Users can switch between different waveforms according to their needs. Equipped with a 1500mAh polymer lithium battery, the DSO-TC3 ensures a super battery life of up to 4 hours. It is and portable, making it perfect for on-the-go use. -

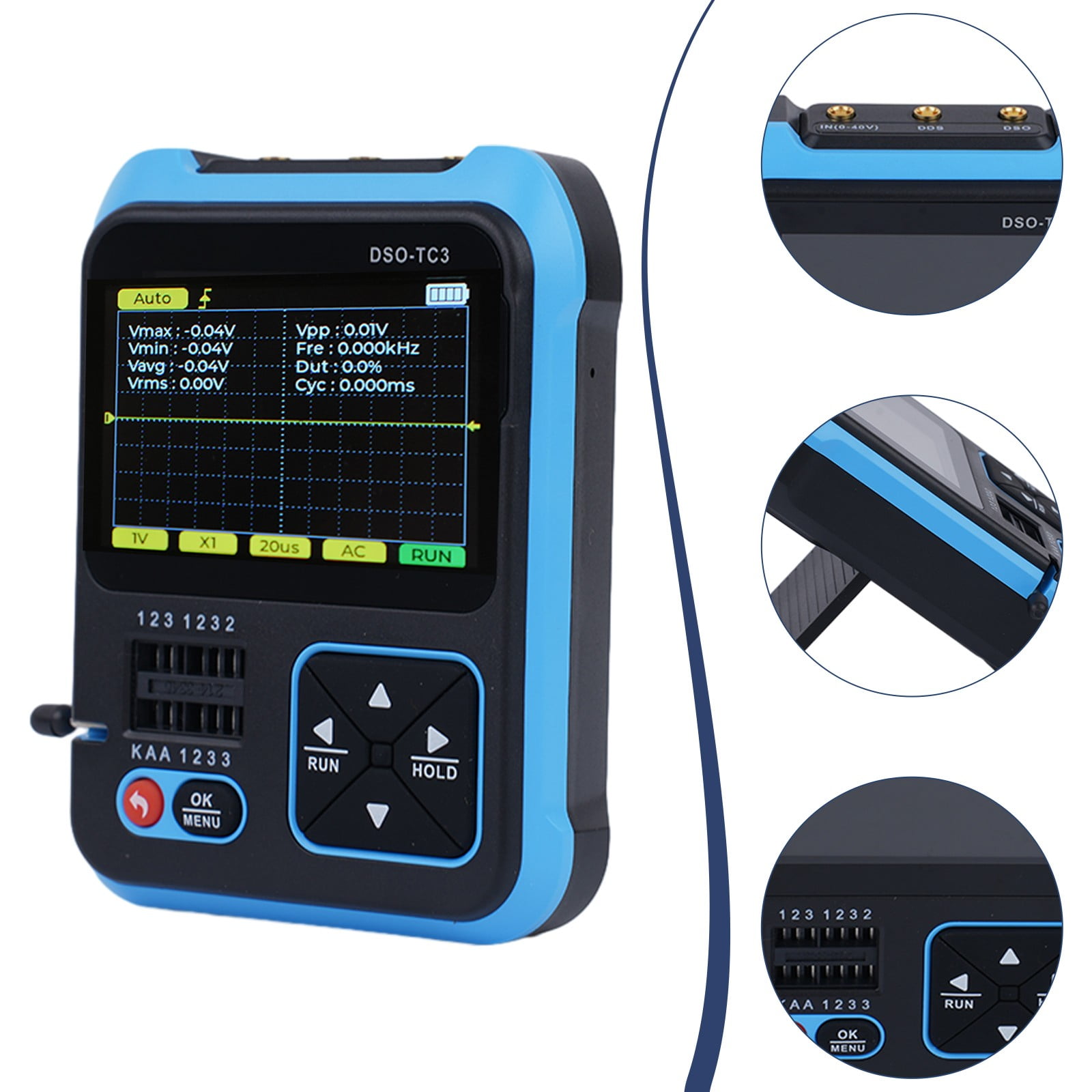

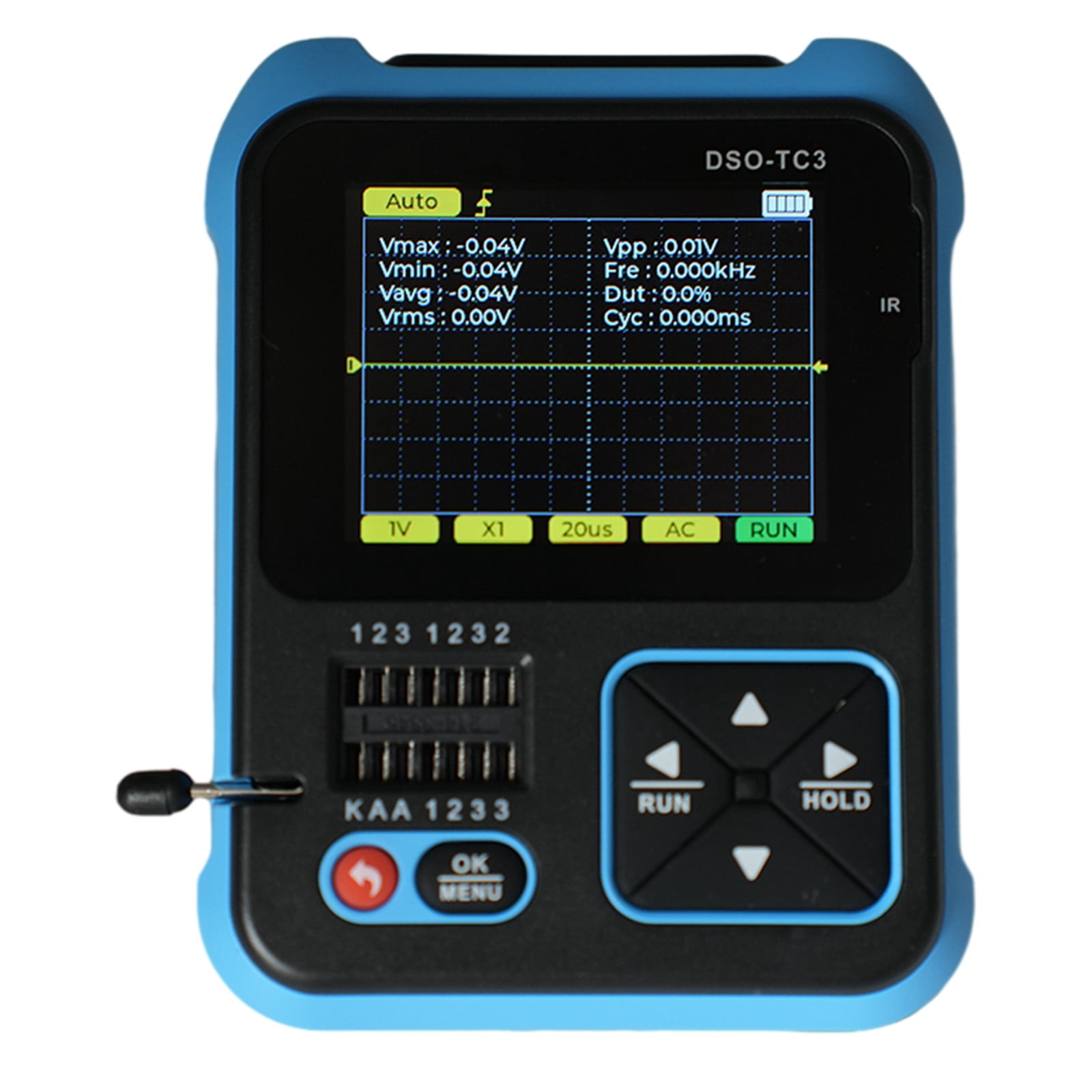

• 【4-INCH TFT FULL COLOR HD DISPLAY, VISIBLE EVEN IN SUNLIGHT】 Featuring a 4-inch TFT full-color HD display, the DSO-TC3 provides clear and vibrant visuals. The screen is visible even under sunlight, excellent readability in any environment. -
