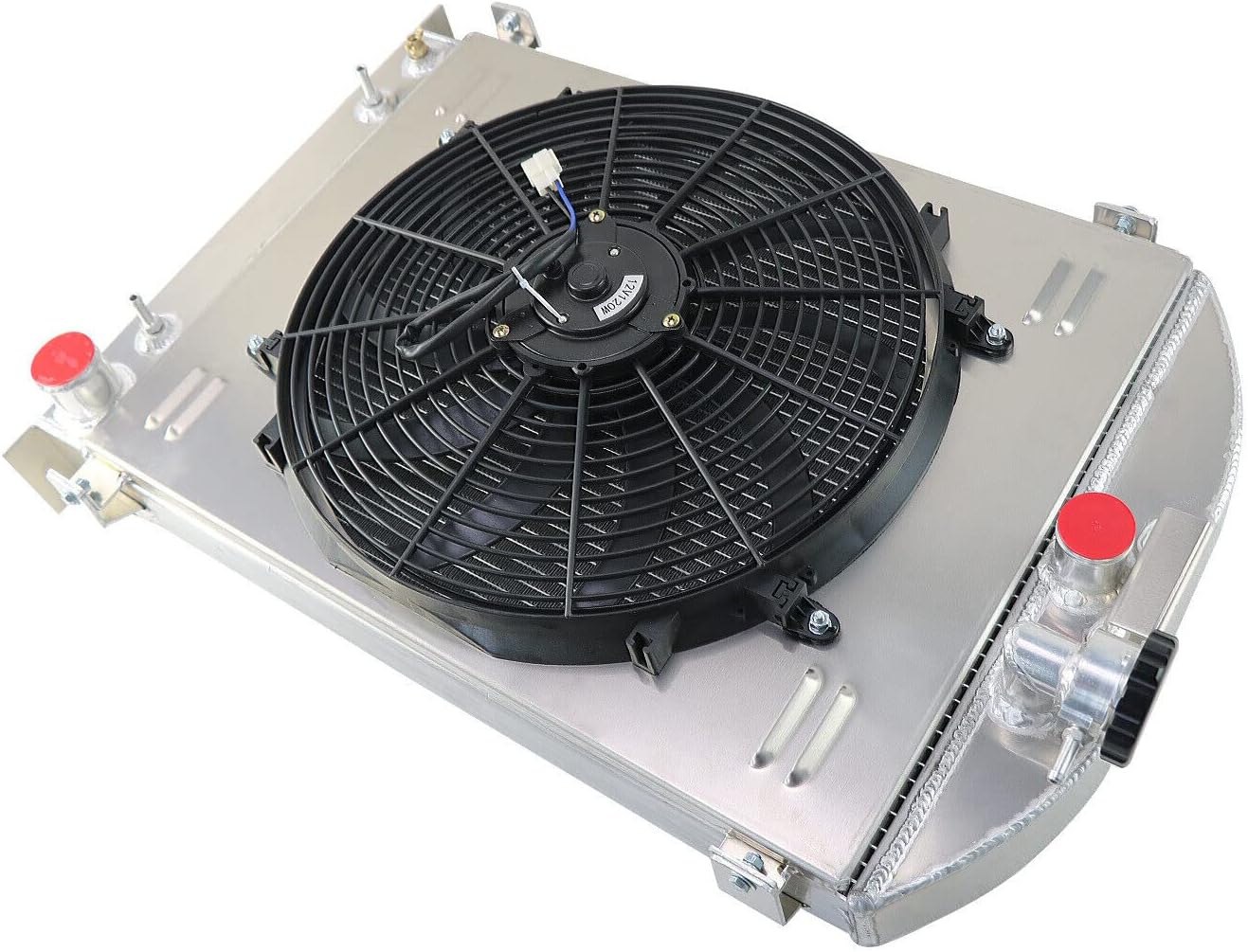

4 Row Radiator Shroud Fan Relay for 1935-1936 Ford Model A GM Chevy V8 Engine 28" H

Package Include:1 X 4-Row AA5052 Aluminum Radiator1 X CNC Machined Radiator Cap1 X AA5052 Aluminum Shroud1 X 16" Fans (Includes mounting kits)1 X Thermostat Relay KitApplication:For Ford hot rod & Chevy 350 V8 Engine 1932For Ford Chevy-V8-Engine 1933-1936For Ford Model-A/Chevy-V8-Engine 1930-1931 Radiator Configuration:High Performance Racing Spec.4-Row of tubes Core Racing DesignPetock Drain: OEM style brass petcock drainSurface Finish: Aircraft Grade Raw AluminumCore Dimensions: 22 1/2''H x 17 1/4''WOverall Dimensions: 28''(H) x19 4/5"(W)Upper inlet: 1-1/2" located on the Center.Lower outlet: 1-3/4" located on the Passenger side.Trans cooler: φ25*250*1/8-27NPT(T)Mount System: Flanges16" FanVoltage: DC 12 VoltsMaximum Fan CFM: 2150 cfmWattage: 120 WattageThickness (in): 2.500"Number of Blades: 10 S-Type bladesMaximum Fan RPM: 2,250 rpmAmp Draw: 10 ampsThermostat Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.Probe typically threads into radiator, water outlet or manifold.RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.

• 【Fitment】- Aluminum Radiator Shroud Fans Comb for 1935-1936 Ford Model Chevy V8 Engine Swap 28'' High with Cooler.
• 【Specification】- Core Dimensions: 22 1/2" H x 17 1/4" W; Overall Dimensions: 28" H x19 4/5" W; Upper Inlet: 1-1/2" located In the Center; Lower Outlet: 1-3/4" located on the Passenger side.
• 【Premium Material】- Full aviation aluminum craftsmanship, 100% welded by TIG. Carefully crafted to exceptional OE standards for a precise fit, Aircraft AA5052 grade aluminum and with a raw aluminum finish.
• 【Efficient Application】- This Aluminum Radiator is at least 30%-45% more efficient than stock ones, which means that your cooling system will be more efficient and more resistant to temperature surges in racing applications.
• 【US Stock】- We are a seller specializing in Cooling systems & Radiators. If you meet any problems, please kindly contact us by sending Amazon Message, we will try our best to help you.
